Guard Rails and Machine Guards


Anderson Builds the Strongest Barriers Available using Heavy-Duty Structural Steel

Quickly add a safety barrier where you need it — in front of your cantilever and pallet racks, office doors, machinery or pedestrian walkways. Anderson’s structural steel is fabricated to stand up to forklift impact. Double-rail design protects your products and work areas up to 44” high. Need a special size guard rail? Let’s talk.

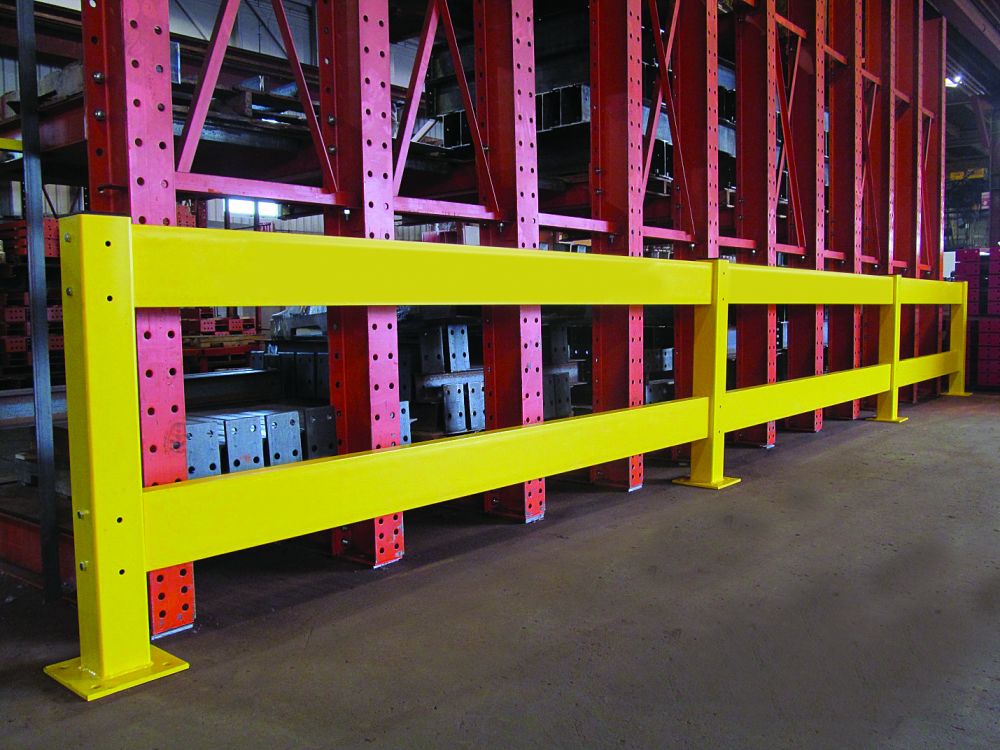

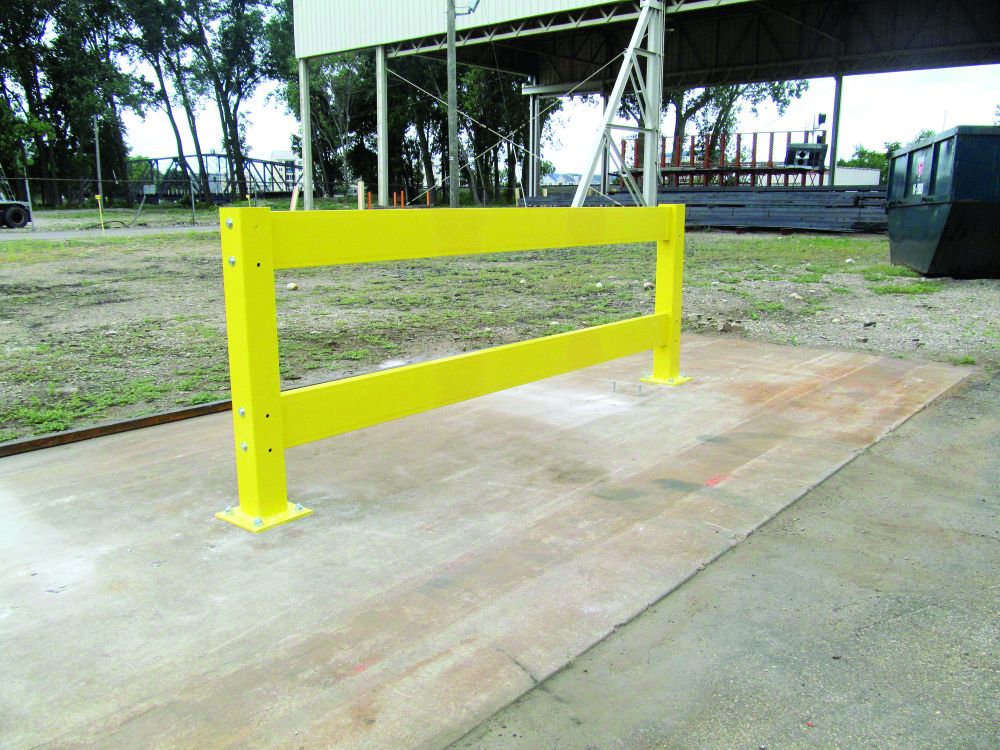

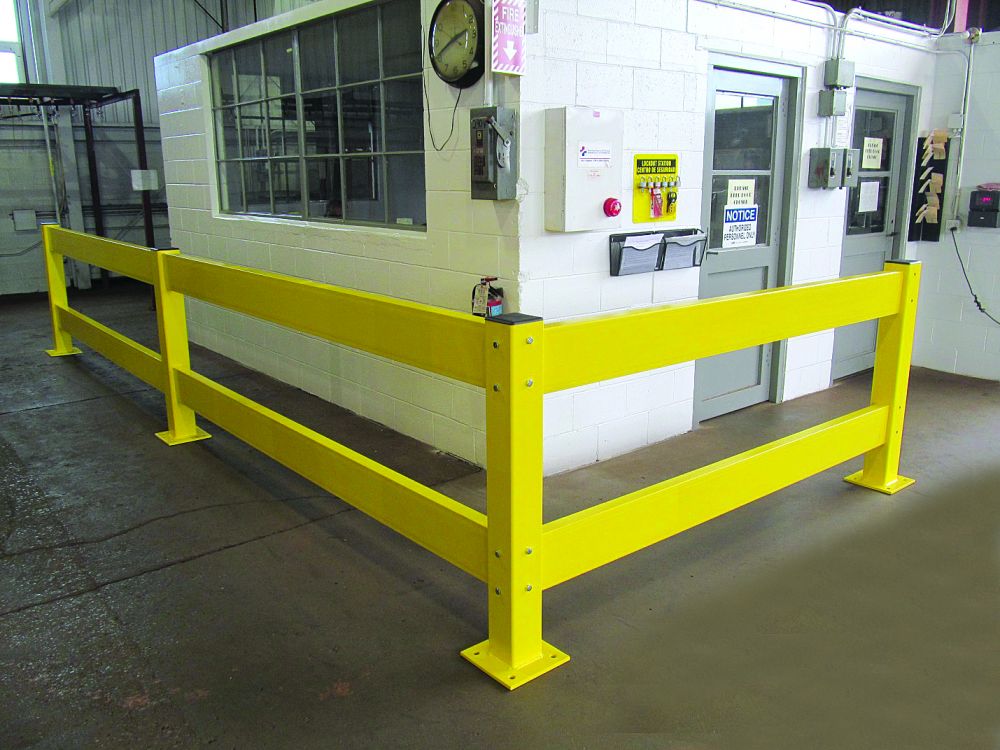

Double Guard Rails

  • Built to withstand 13,360 lb. impact at 4 m.p.h.
  • Posts: 5” square structural steel tube with a 1/2” base plate
  • Four holes per base for 3/4” concrete anchors
  • Rails made from 8” structural steel channel
  • Standard rail lengths:
    24”, 36”, 48”, 60”, 72”, 84”, 96”, 108” and 120”
  • Custom lengths available
  • Concrete anchors and rail hardware
included for fast assembly

  • Safety yellow, powder-coated finish

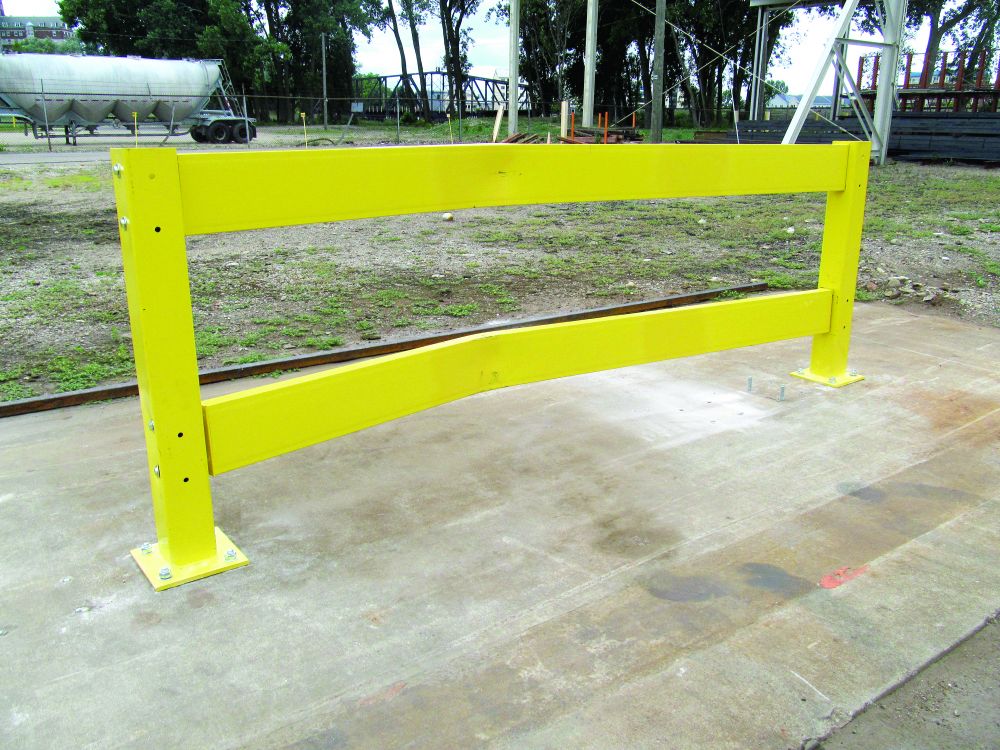

Before and After 13,360 lb. impact at 4 mph

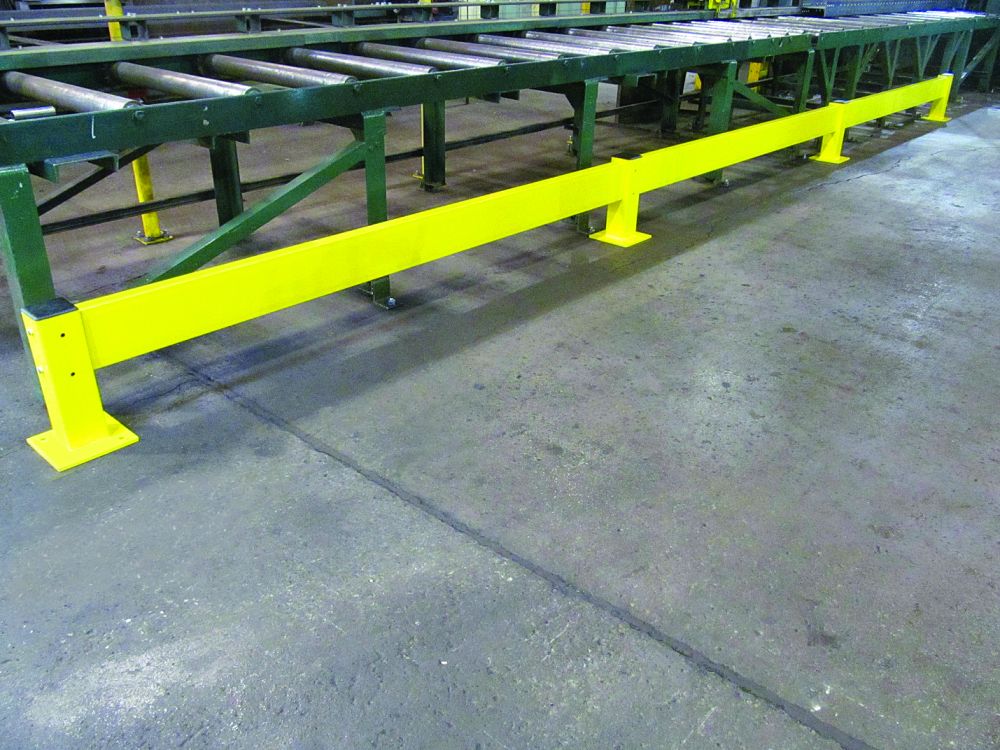

Single Guard Rails

Standard single guard rail post height is 18” with custom sizes available. Just ask.


  • Posts: 5” square structural steel tube with a 1/2” base plate
  • Four 3/4” diameter holes per base for concrete anchors
  • Rails made from 8” structural steel channel
  • Standard rail lengths: 24”, 36”, 48”, 60”, 72”, 84”, 96”, 108” and 120”
  • Custom lengths available
  • Concrete anchors and rail hardware included • Safety yellow, powder-coated finish

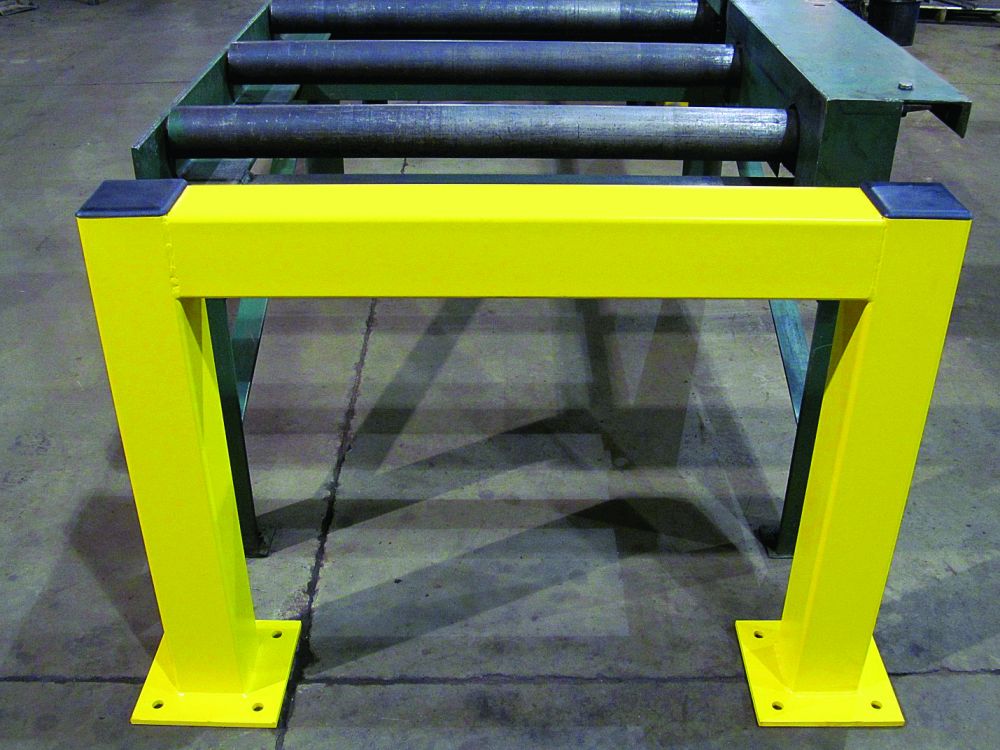

Machine Guard
s

Install peace of mind to protect valuable machinery and personnel
It takes just one wrong move with a forklift or other equipment to destroy tens of thousands of dollars of machinery or injure a worker. Barriers with Anderson’s machine guards take just minutes to prevent this damage.

  • Built with 5” square structural steel tubes with a 1/2” base plate
  • Standard widths: 36” and 48”
Standard heights: 12”, 24”, 36” and 42”
  • Custom sizes available

  • Safety yellow, powder-coated finish
